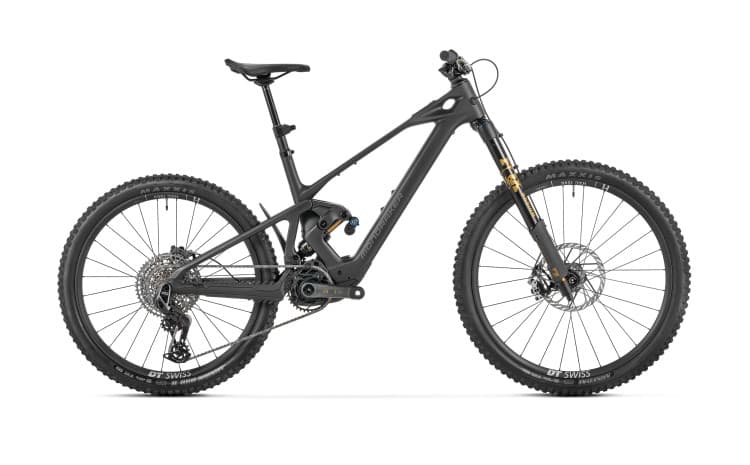

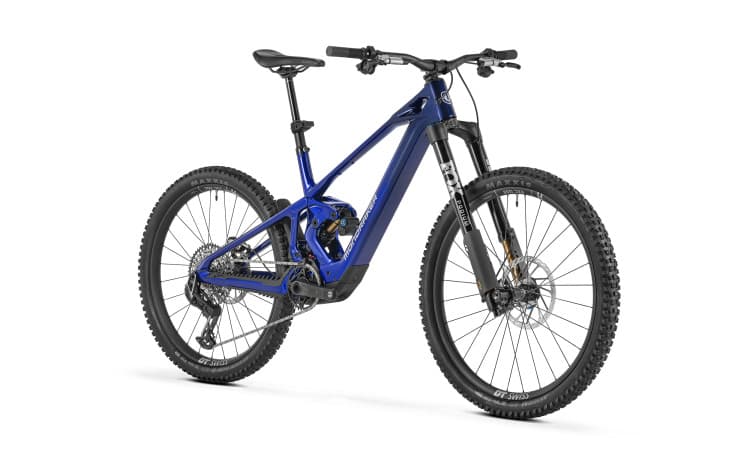

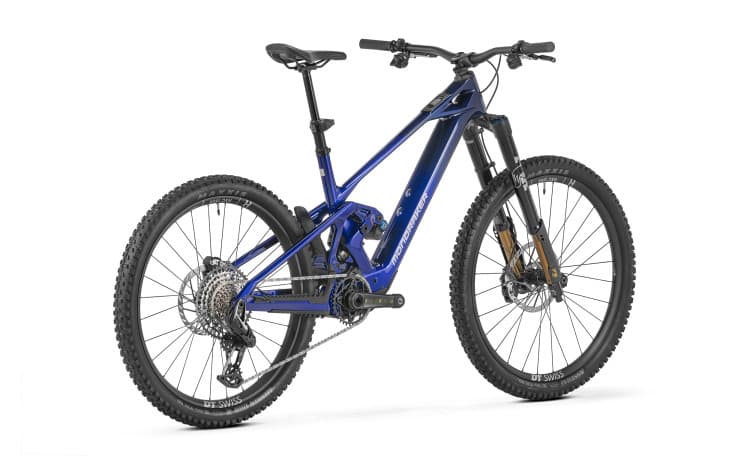

Zendit XR — product image 1 at Stretton Bikes

1/4

Overview

About this bike

The Mondraker Zendit XR is the flagship of the Zendit line — Mondraker's most capable e-MTB to date. It combines the compact, powerful DJI Avinox M2S motor and integrated 800Wh battery with Fox Podium and Float X2 Factory suspension, SRAM X0 Eagle AXS T-Type, Maven Ultimate brakes, carbon DT Swiss Hybrid HXC 1500 wheels, and a RockShox Reverb AXS dropper. Designed for riders who see the mountains as a challenge, the XR excels on the steepest climbs and most demanding descents.

The Avinox M2S delivers 130Nm (150Nm Boost), 1300W peak power, and fully customisable Eco, Auto, Trail, Turbo, and Boost modes. The XR includes Mondraker's 12A GaN fast charger — charging the 800Wh battery from 0–75% in around 90 minutes. Ideal for expert trail and enduro riders who want the ultimate Zendit build, the XR suits bike-park laps, natural enduro terrain, and long technical days in the Peaks or Welsh mountains.

At £10,999 it represents Mondraker's top-tier e-MTB offering for 2027. Buy from Stretton Bikes for professional build and setup, sizing advice, finance options, Cycle to Work eligibility, and workshop support in Ashby-de-la-Zouch. We know the Zendit platform and Avinox system — get in touch before and after your purchase.

  • Flagship Zendit with DJI Avinox M2S and 800Wh battery
  • Fox Podium GRIP X2 Factory fork and Float X2 Factory rear shock
  • SRAM X0 Eagle AXS T-Type and Maven Ultimate brakes
  • DT Swiss Hybrid HXC 1500 carbon wheels
  • Avinox 12A GaN fast charger (508W, 0-75% in ~90 min)

Specifications

Frame
Zendit Stealth Air full Carbon, Updated Zero Suspension System, 165mm travel, Forward Geometry, internal battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.
Sizes
S: 380mm / M: 410mm / M/L: 435mm / L: 460mm / XL: 490mm

Why you'll love it

Flagship Zendit with DJI Avinox M2S and 800Wh battery

Fox Podium GRIP X2 Factory fork and Float X2 Factory rear shock

SRAM X0 Eagle AXS T-Type and Maven Ultimate brakes

DT Swiss Hybrid HXC 1500 carbon wheels

Who it's for

Ideal for 1

Electric Mountain riding

Ideal for 2

Hilly routes and longer days in the saddle

Ideal for 3

Riders extending their trail mileage

Key technology & features

Frame

Carbon

Groupset

SRAM X0 Eagle AXS T-Type, 12-speed wireless

Motor

Avinox M2S

Battery

800Wh

Travel

170mm fork · 165mm rear

Wheels

Mullet

Mondraker Zendit XR — riding on UK trails and lanes

Built to ride

Mondraker Electric Mountain performance

Premium bikes, expert setup, and Midlands riding from Stretton Bikes in Ashby-de-la-Zouch.

Official Mondraker size guide for Zendit XR

Size S
Rider height up to 165 cm
Size M
Rider height 165–175 cm
Size M/L
Rider height 170–185 cm
Size L
Rider height 180–190 cm
Size XL
Rider height 190 cm and above

Sizing

Find Your Perfect Size

Choosing the correct frame size makes a huge difference to comfort, confidence and performance. Enter your height below to see the official manufacturer recommendation.

Available sizes: S, M, M/L, L, XLColours: Black, Blue, Admiral Blue, Vortex Grey

Your height

140 cm210 cm

Recommended frame size

M and M/L

Suitable sizes

M and M/L

M (165–175 cm) — smaller size for a more playful, agile ride.

M/L (170–185 cm) — larger size for greater stability and confidence at speed.

Confidence

Between Sizes
View Full Geometry+

Reach, stack, seat tube, head angle, chainstay, wheelbase, BB drop, standover, effective top tube, and seat angle measurements.

MeasurementSMLXLM/L
Seat tube length380mm410mm460mm490mm435mm
Reach440mm460mm500mm520mm480mm
Stack631mm631mm649mm658mm640mm
Head tube angle63.5°63.5°63.5°63.5°63.5°
Seat tube angle73.5°73.5°73.5°73.5°73.5°
Effective seat tube angle77°77°77°77°77°
Chainstay length450mm450mm455mm455mm450mm
Wheelbase1241mm1261mm1315mm1339mm1286mm
Bottom bracket height345mm345mm345mm345mm345mm

Still unsure?

We build and size bikes every day. Call us, email us or visit our Ashby-de-la-Zouch showroom and we'll help you choose the perfect size.

Get Sizing Advice

Delivery & collection

Collection

Collect free from our Ashby-de-la-Zouch showroom. Bikes are fully inspected and safety-checked before handover.

Delivery

  • Free delivery on bikes over £1,000.
  • Bikes under £1,000: £60 delivery.
  • Delivery available to England and Wales only.

Why buy from Stretton Bikes

Authorised dealer for Mondraker, Basso and Marin
Showroom and workshop in Ashby-de-la-Zouch, serving the Midlands
Professional bike fitting and independent advice
Cycle to Work and finance enquiries handled personally
Every bike safety-checked before handover

FAQs

This bike is available to order. Lead times vary by brand and size — we will confirm when you enquire.
